Name: PP Manual Butt Fusion Welding Machine OEM Design
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
SKU: SMD-B160/50M
Price: 50.00 USD
Availability: InStock

Startseite Produkte Manuelle Kolben-Schmelzschweißen-Maschine

PP Manual Butt Fusion Welding Machine OEM Design

Produktdetails:

Herkunftsort:	China
Markenname:	ZEMO
Zertifizierung:	CE , ISO
Modellnummer:	SMD-B160/50M

Zahlung und Versand AGB:

Min Bestellmenge:	1 SATZ
Preis:	negotiable
Verpackung Informationen:	Polywood-Fälle
Lieferzeit:	3-7 Werktage nach Zahlung
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	300 Satz/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Manuelle Kolben-Schweißungs-Fusions-Maschine	Rohr-Größe (Millimeter:	50,63,75,90,110,125,140,160,
Heizplatte Max. Temp.:	℃ 270	Temp.deviation in der Oberfläche (℃ 170-250):	≤±5℃
Funktions-Spannung:	220V, 50/60HZ, einphasiges	Heizplatteenergie:	1KW
Planierungswerkzeugenergie:	0.7KW	Gesamtleistung:	1.75KW
Gewicht:	44kG	Garantie:	24 Monate
Hervorheben:	PP Manual Butt Fusion Welding Machine , OEM Manual Butt Fusion Welding Machine , Manual Butt Fusion Welder

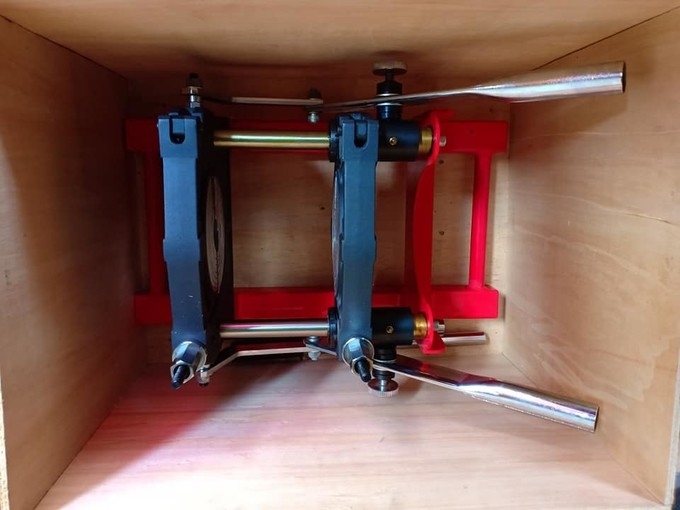

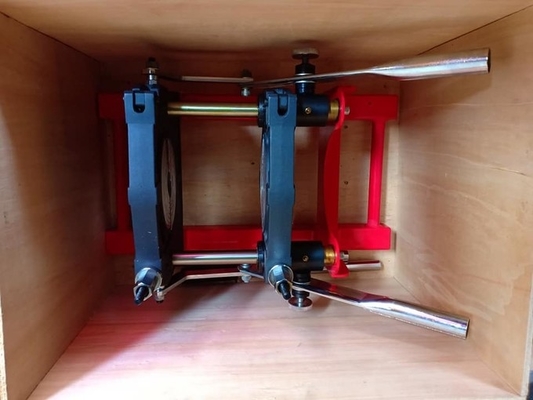

Manual Butt Weld Fusion Machine Description

Manul Butt Weld Fusion Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts

Manual Butt Weld Fusion Machine Specification

product name		160MM Manual Butt Weld Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Manual Butt Weld Fusion Machine Advtange

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

Manual Butt Weld Fusion Machine Guarantee and Service

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
